The Metravi 908 Portable Vibration Meter is a handheld device designed for measuring vibration levels in machinery and equipment, helping to identify potential mechanical issues before they become significant problems. It is ideal for maintenance personnel, engineers, and technicians in various industries to monitor machine health and diagnose imbalances, misalignments, and bearing failures. Below are the detailed specifications and features of the Metravi 908:

Key Specifications:

• Model: 908
• Brand: Metravi
• Measurement Parameters: Measures vibration in terms of velocity, acceleration, and displacement.

Measurement Ranges:

• Acceleration: 0.1 - 199.9 m/s² (RMS or peak)
• Velocity: 0.1 - 199.9 mm/s (RMS)
• Displacement: 0.001 - 1.999 mm (peak-to-peak)
• Frequency Range: 10Hz to 1kHz, suitable for a wide range of mechanical systems.

Features:

• Digital Display: Large, easy-to-read backlit LCD screen that displays measurement values clearly.
• Data Hold Function: Allows the user to freeze readings on the display for easy observation and recording.
• Max/Min Function: Captures and displays the maximum and minimum vibration levels for thorough analysis.
• Auto Power Off: Automatically turns off after a period of inactivity to conserve battery life.
• Sampling Rate: Provides real-time data with a quick sampling rate for accurate monitoring.

Probe and Measurement:

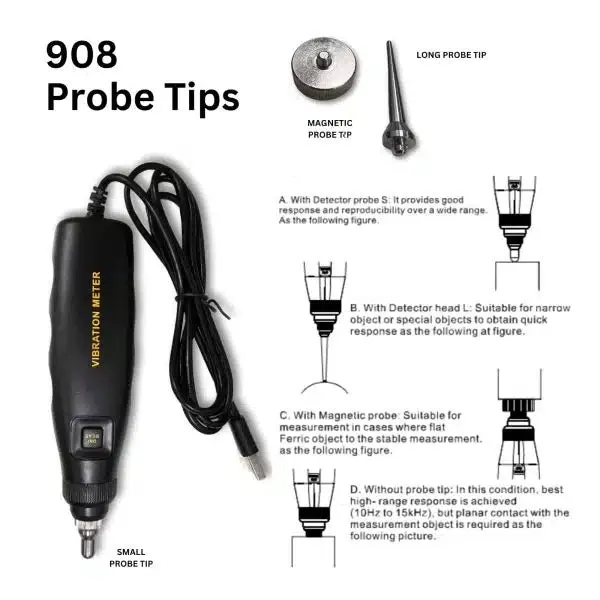

• External Vibration Sensor: Equipped with a detachable vibration sensor probe, which allows for easy access to hard-to-reach measurement points.
• Magnetic Base: The sensor probe often includes a magnetic base for hands-free operation on metal surfaces.

Power Source:

• Battery Operated: Uses standard batteries, providing portability and convenience for field use.
• Battery Type: Typically 9V or AA batteries, depending on the specific design.
• Low Battery Indication: Alerts the user when the battery is running low, ensuring consistent performance.

Safety and Compliance:

• Durable Design: Built for use in industrial environments with a rugged, shock-resistant casing.
• Certifications: Adheres to international standards for vibration measurement instruments.
• Operating Temperature Range: Suitable for use in various environments, from indoor facilities to outdoor equipment inspections.

Physical and Design:

• Compact and Lightweight: Designed for easy handling and transport, making it ideal for on-site inspections.
• Color: Typically available in a robust blue or black finish.
• Warranty: One year against manufacturing defects.

Applications:

The Metravi 908 Portable Vibration Meter is ideal for:

• Predictive Maintenance: Regularly monitoring vibration levels helps identify changes in machinery behavior, enabling timely maintenance.
• Condition Monitoring: Ensures the ongoing health of motors, pumps, fans, and other rotating machinery.
• Fault Diagnosis: Identifies issues such as misalignment, imbalance, looseness, and bearing failures.
• Industrial Machinery: Used in a variety of industries like manufacturing, energy production, automotive, and more.
