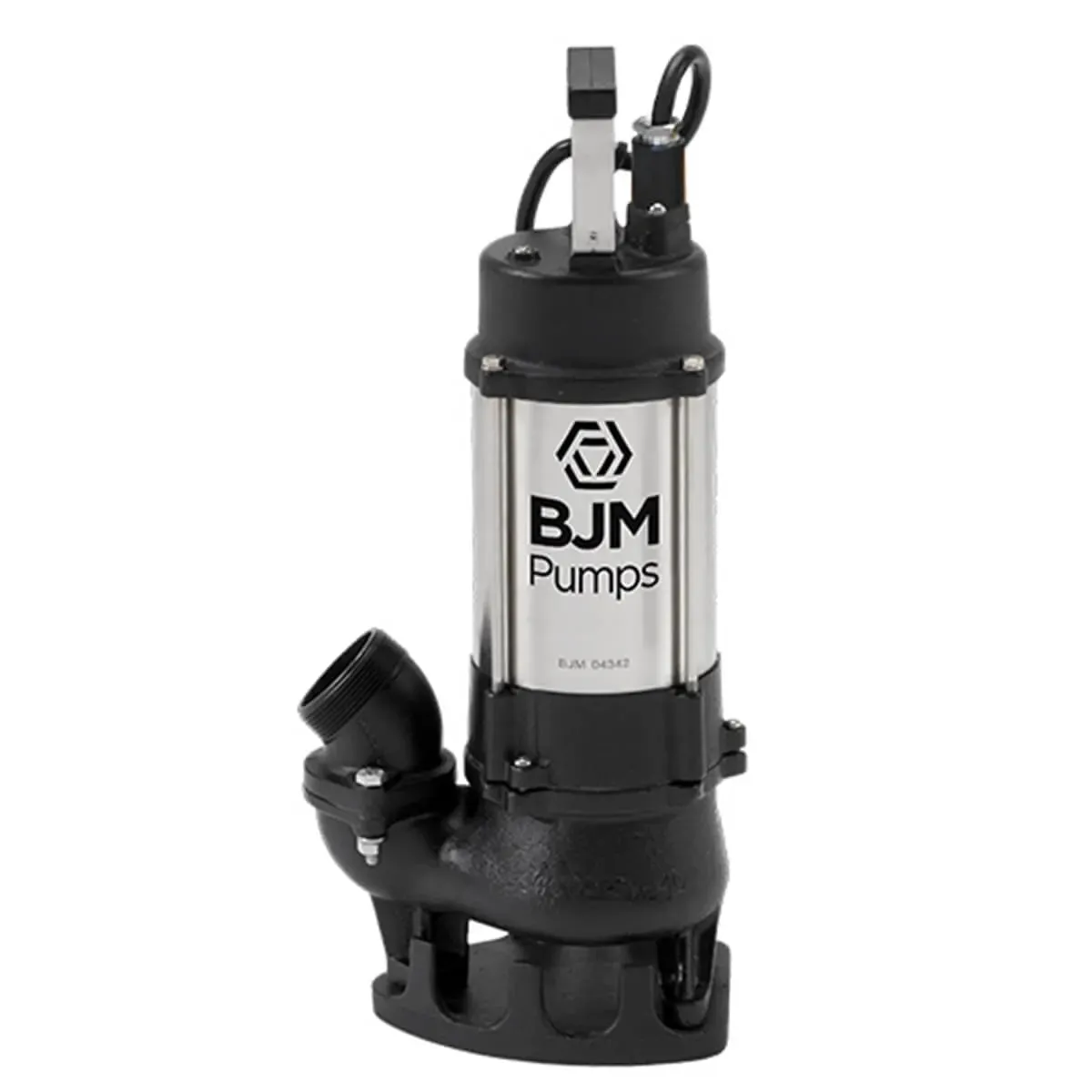

BJM SV400-115 2" Vortex Trash Submersible Pump

The SV family of pumps from BJM offer long life and trouble free performance at a low investment cost. Motor Casing, impeller shaft and all hardware are made of 304 Stainless Steel, with impeller and other exposed parts made of cast-iron. Each pump is tested at the factory for performance as well as safety.

Features

For non-clog, solids handling pump for sludge, sewage, trash & industrial waste
Recessed vortex impeller pumps for passing large solids found in sewage and industrial waste
SV pumps are designed to pass mud, raw sewage, leaves, rags, wood chips and other solids without clogging

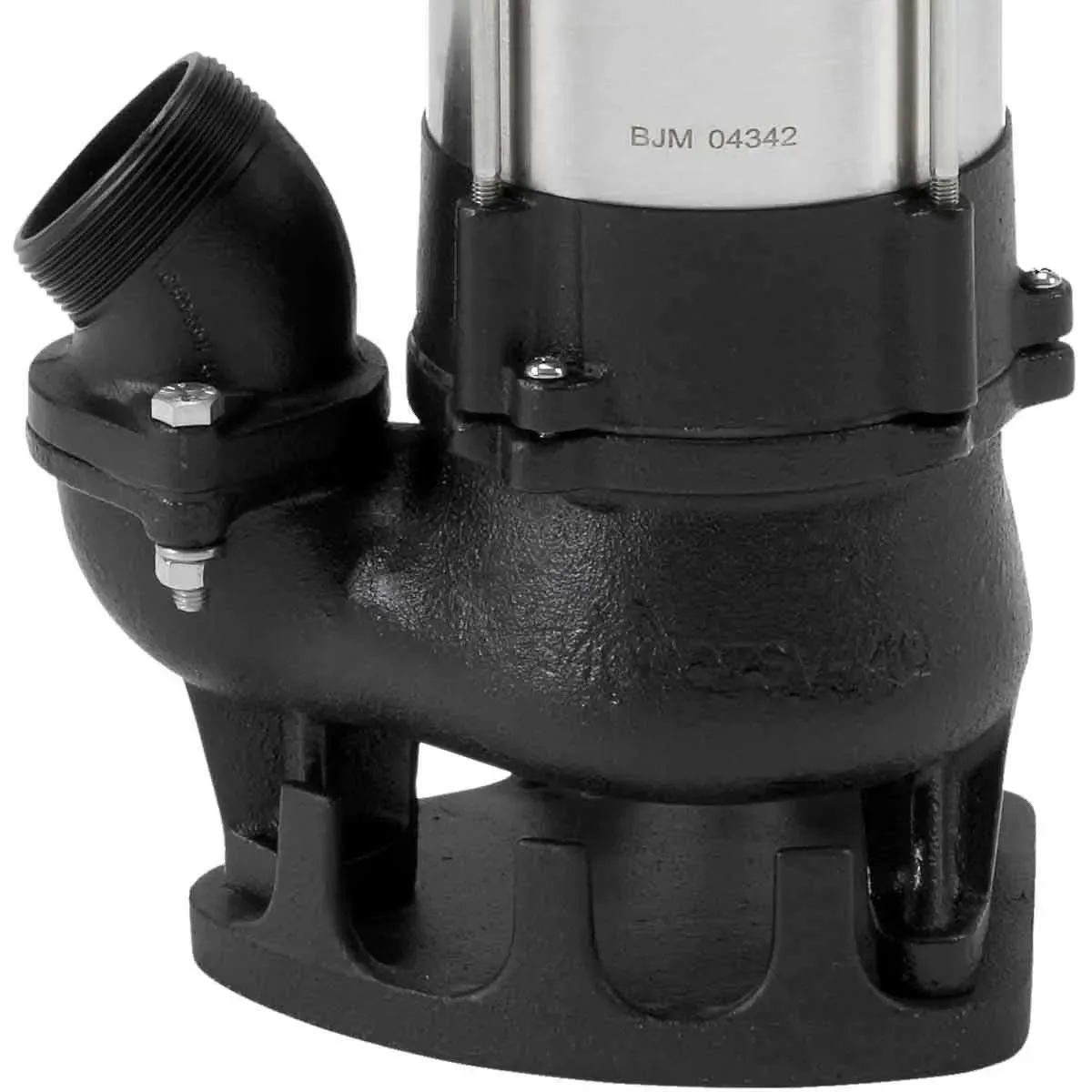

Constructed with a cast iron volute and fully recessed impeller for pumping solids without clogging
Rugged construction (no breakable plastic component) and light weight for portability
Lip Seal and double mechanical seals
Lower seal is silicon carbide/silicon carbide and upper seal is carbon/ceramic
Built in high temperature automatic overload switch and class F motor insulation protects against motor failure due to overheating
1/2 HP, 110V, single phase, 7.5 Full Load Amp
Max Solids 1-1/2"

Technical Specifications

BJM SV400-115 Specifications
MAX. FLOW: GPM	59 gpm
MAX. HEAD: ft	22 ft
PUMP TYPE	Elect.Submersible, Non-Clog Vortex
DISCHARGE CONNECTION	2" NPT-M (45° elbow)
SHIPPING WEIGHT:lbs	40 lbs
MECHANICAL SEAL UPPER	Crb / Cer
MECHANICAL SEAL LOWER	Sic / Sic
MOTOR CASING	304 SS
PUMP VOLUTE	Cast Iron
IMPELLER-MULTI VANE	Cast Iron
LIPSEAL & O-RINGS	Buna-N
ROTOR SHAFT	304 SS
EXTERNAL HARDWARE	304 SS
QTY. OIL IN SEAL CHAMBER	1.35 U.S. fl. oz.

ELECTRICAL/MOTOR DATA
MOTOR RATING: HP	1/2
MOTOR RPM	3450 Rpm
MOTOR INSULATION CLASS	F
MOTOR SERVICE FACTOR	1.1
VOLTAGE	110V, 1ph-60Hz
CURRENT Full Load Amps.	7.5 Amps
MOTOR PROTECTION	Thermal breaker
POWER CORD GAGE & LENGTH	16/3, 33 ft
MAXIMUM LIQUID TEMPERATURE	104 F
